Product Summary
The MAX262ACWG is a CMOS dual second-order universal switched-capacitor active filter. The MAX262ACWG allows microprocessor control of precise filter functions. No external components are required for a variety of bandpass, lowpass, highpass, notch and allpass configurations. Eacg device contains two second-order filter operating mode under programmed control. The applications of the MAX262ACWG include μP Tuned Filters, Anti-Aliasing Filters, Digital Signal Processing, Adaptive Filters, Signal Analysis, Phase-Locked Loops.
Parametrics
MAX262ACWG absolute maximum ratings: (1)Total Supply Voltage: 15 V; (2)Input Voltage, any pin: -0.3 to 0.3 V; (3)Input Current, any pin: ±50 mA; (4)Plastic DIP: 660 mW; (5)CERDIP: 1000 mW; (6)Wide SO: 944 mW; (7)Operating Temperature: 0 to 70 ℃; (8)Storage Temperature: -65 to 160 ℃; (9)Lead Temperature: 300 ℃.
Features
MAX262ACWG features: (1)Filter Design Software Available; (2)Microprocessor Interface; (3)64-Step Center Frequency Control; (4)128-Step Q Control; (5)Independent Q and f0 Programming; (6)Guaranteed Clock to f0 Ratio-1%; (7)75kHz f0 Range; (8)Single +5 V and ±5 V Operation.

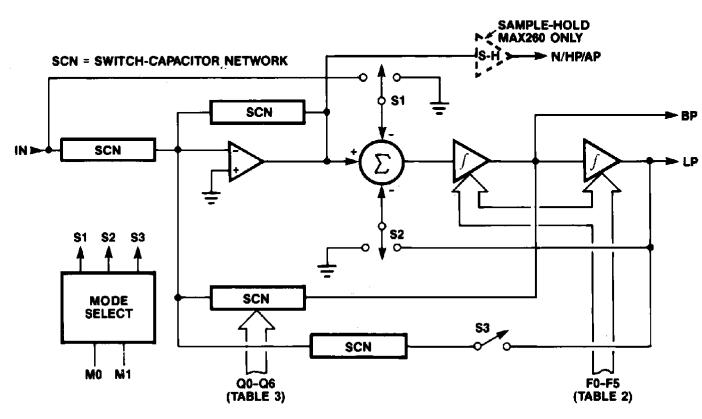

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
MAX262ACWG |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
|||||
MAX262ACWG+ |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
|||||
MAX262ACWG-T |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
|||||
MAX262ACWG+T |
Maxim Integrated Products |
Active Filters |
Data Sheet |
Negotiable |
|
