Product Summary

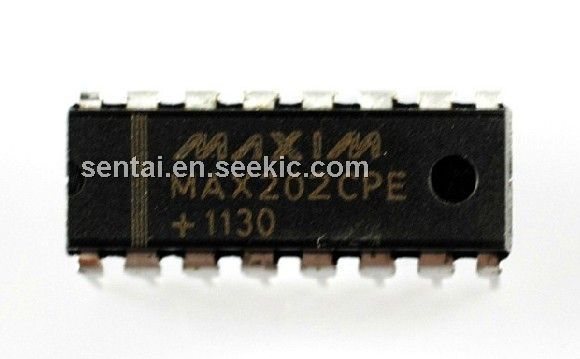

The MAX202CPE is a 5V RS-232 Transceiver with 0.1uF External Capacitor. The MAX202CPE is designed for RS-232 and V.28 communication interfaces where ±12V supplies are not available. On-board charge pumps convert the +5V input to the ±10 needed for RS-232 output levels. The MAX202CPE operates from +5V and +12V, and contain a +12V to -12V charge-pump voltage converter. The applications of the MAX202CPE include Computers, Laptops,Palmtops, Notebooks, Battery-Powered Equipment, Hand-Held Equipment.
Parametrics
MAX202CPE absolute maximum ratings: (1)Vcc: -0.3 to 6 V; (2)V+: -0.3 to 14 V; (3)V-: 0.3 to -14 V; (4)TIN: -0.3 to 0.3 V; (5)RIN: ±30 V; (6)TOUT: +0.3 to -0.3 V; (7)ROUT: -0.3 to +0.3 V; (8)Continuous Power Dissipation (TA= +70℃), 14-Pin Plastic DIP: 800 mW; (9)Operating Temperature Ranges, MAX2--C: 0℃ to 70℃; (10)Storage Temperature Range: -65℃ to 160℃; (11)Lead Temperature: +300℃.
Features
MAX202CPE features: (1)0.1μF to 10μF External Capacitors; (2)120kbits/sec Date Rate; (3)2 Receivers Active in Shutdown Mode; (4)Small 28-Pin SSOP Package, Uses 60% Less Space than SOIC; (5)Low-Power Shutdown Current: 1μA; (6)Designed for RS-232 and V.28 Applications; (7)Three-State TTL/CMOS Receiver Outputs.

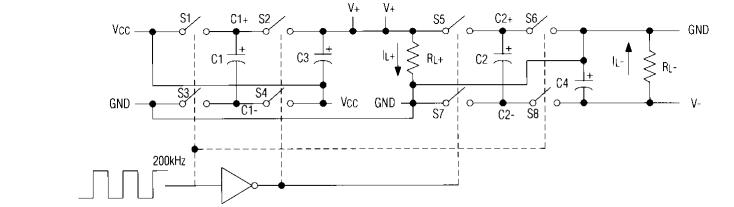

Diagrams
