Product Summary

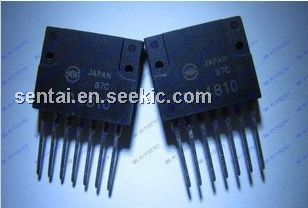

The MA4810 is a Power Switching Regulator.
Parametrics
MA4810 absolute maximum ratings: (1)Storage Temperature, Tstg: -30 to 125 ℃; (2)Operating Temperature, Top: -20 to 125 ℃; (3)Junction Temperature, Tj: 150 ℃; (4)Peak Input Voltage, Vin: 800 V; (5)Input Current, Iin: 6 A; (6)Maximum Power Dissipation, PD: 3 W; (7)Dielectric Strength, Vdis: 2 KV; (8)Insulation Resistance: 100 MΩ; (9)Max Voltage ④ to ⑥, V④·⑥: 6 V; (10)Max Current ⑥ to ④, I⑥·④: 200 mA; (11)Reverse Current, IZ: MAX 20 mA.
Features
MA4810 features: (1)Zero Gate Voltage Dreain Current, IDSS: MAX 250 μA; (2)Static Drain-Source On-State Resistance, RDS(on): MAX 5.0 Ω; (3)Thermal Resistance, θjc: MAX 2.9 ℃/W; (4)Reverse Current, IR: MAX 10 μA; (5)Forward Voltage, VF: MAX 1.7 V; (6)Fold Back Detection Voltage: TYP 0.7 V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MA4810 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MA4810-4100 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=60 |
Data Sheet |
Negotiable |
|
||||
|
MA4810-4104 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=60 |
Data Sheet |
Negotiable |
|
||||
|
MA4810-4105 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=60 |
Data Sheet |
Negotiable |
|
||||
|
MA4810-7100 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=60 |
Data Sheet |
Negotiable |
|
||||
|
MA4810-7104 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=60 |
Data Sheet |
Negotiable |
|
||||
|
MA4810-7105 |
Shindengen |
Switching Converters, Regulators & Controllers Input V=180-276 W=60 |
Data Sheet |
Negotiable |
|
||||
