Product Summary

The LT3413 is an infrared lamp led.

Parametrics

LT3413 absolute maximum ratings: (1)DC Forward Current: 30 mA; (2)Forward Peak Pulse Current: 100 mA; (3)Reverse Voltage: 5 V; (4)Power Dissipation: 100 mW; (5)Operating Temperature: -40 to 100ºC; (6)Storage Temperature: -40 to 105ºC; (7)Solder Temperature: 260 ºC for 10 second.

Features

LT3413 features: (1)Push to reset; (2)Approved to many international standards; (3)Replaces slow blow glass cartridge fuse; (4)Labor-saving snap-in mounting; (5)Button extends for visual trip indication.

Diagrams

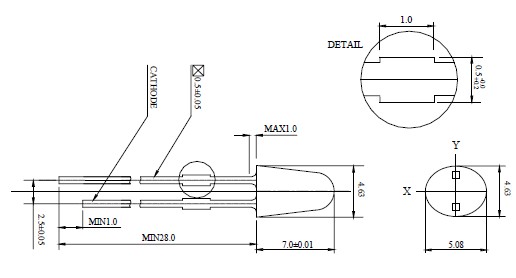

LT3413 dimension figure
