Product Summary
The LT1016MH is an Ultra Fast Precision Comparator. The LT1016MH Specifically designed to interface directly to TTL logic while operating off either a dual ± 5V supply or a single + 5V supply. Tight offset voltage specifications ang high gain allow the LT1016MH to be used in precision applications. Matched complementary outputs further extend the versatility of this comparator. The applications of the LT1016MH include High Speed A to D Converters, High Speed Sampling Circuits, Line Receiver, Extended Range V to F Converters, Fast Pulse Height/Width Discriminators.
Parametrics
LT1016MH absolute maximum ratings: (1)Positive Supply Voltage: 7 V; (2)Negative Supply Voltage: 7 V; (3)Differential Input Voltage: ±5 V; (4)Input Voltage: Equal to Supplies; (5)Latch Pin Voltage: Equal to Supplies; (6)Output Current: ±20 mA; (7)Operating Temperature Range: -55 to 125 ℃; (8)Storage Temperature Range: -65 to 150 ℃; (9)Lead Temperature: 300 ℃.
Features
LT1016MH features: (1)Ultra Fast; (2)Operates Off Single +5 V Supply, or ±5 V; (3)Complementary Output to TTL; (4)Low Offset Voltage; (5)No Minimum Input Slew Rate Requirement; (6)No Power Supply Current Spiking; (7)Output Latch Capability.

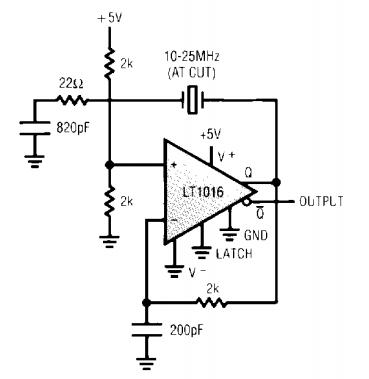

Diagrams

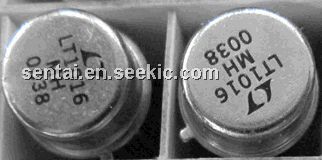

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LT1016MH |
Other |
Data Sheet |
Negotiable |
|
||||||||||||
