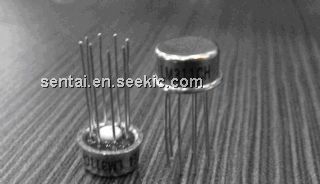

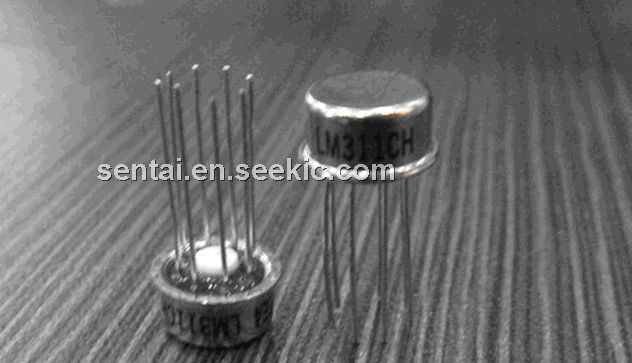

Product Summary
The LM311CH is a voltage comparator. The LM311CH has input currents nearly a thousand times lower than devices like the The LM311CH. The LM311CH is also designed to operate over a wider range of supply voltages: from standard ±15V op amp supplies down to the single 5V supply used for IC logic. Its output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, it can drive lamps or relays, switching voltages up to 50V at currents as high as 50 mA.
Parametrics
LM311CH absolute maximum ratings: (1)Total Supply Voltage (V84): 36V; (2)Output to Negative Supply Voltage (V74): 50V; (3)Ground to Negative Supply Voltage (V14): 30V; (4)Differential Input Voltage: ±30V; (5)Input Voltage (Note 4): ±15V; (6)Output Short Circuit Duration: 10 sec; (7)Operating Temperature Range: -55℃ to 125℃; (8)Lead Temperature (Soldering, 10 sec): 260℃; (9)Voltage at Strobe Pin: -5V; (10)Soldering Information, Dual-In-Line Package: 260℃; (11)ESD Rating (Note 11): 300V.
Features
LM311CH features: (1)Operates from single 5V supply; (2)Input current: 150 nA max. over temperature; (3)Offset current: 20 nA max. over temperature; (4)Differential input voltage range: ±30V; (5)Power consumption: 135 mW at ±15V.

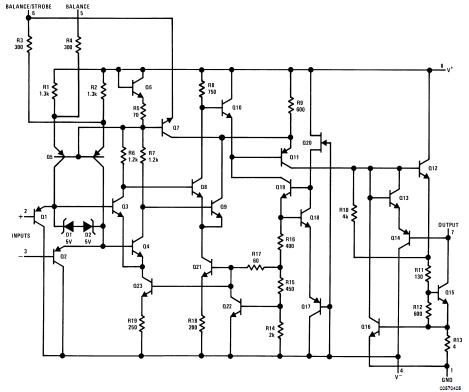

Diagrams
