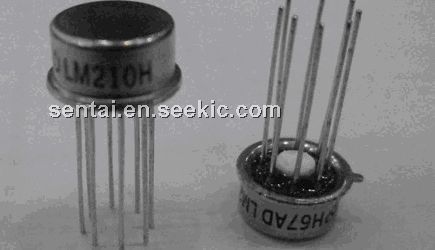

Product Summary

The LM210H is a monolithic operational amplifier. The LM210H is internally connected as unity-gain non-inverting amplifiers. The LM210H uses super-gain transistors in the input stage to get low bias current without sacrificing speed. Directly interchange able with 101, 741 and 709 in voltage follower applications, these devices have internal frequency compensation and provision for offset balancing.

Parametrics

LM210H absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation (Note 1): 500 mW; (3)Input Voltage (Note 2): ±15V; (4)Output Short Circuit Duration (Note 3): Indefinite; (5)LM210H: -25℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Lead Temperature (Soldering, 10 sec.): 260℃; (8)Dual-In-Line Package, Soldering: 260℃; (9)Small Outline Package, Vapor Phase: 215℃; (10)Infrared (15 sec.): 220℃.

Features

LM210H features: (1)Input current: 10 nA max over temperature; (2)Small signal bandwidth: 20 MHz; (3)Slew rate: 30 V/ms; (4)Supply voltage range: -5V to +18V.

Diagrams

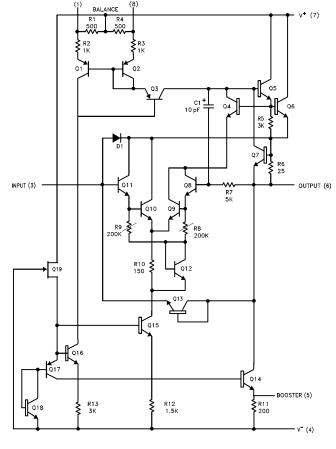

LM210H block diagram
