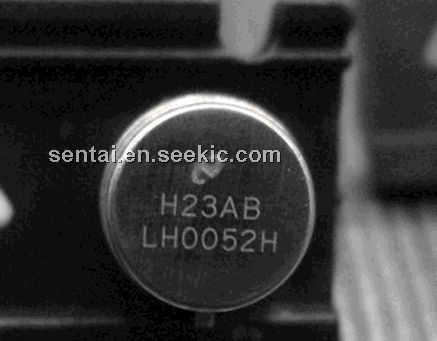

Product Summary

The LH0052H is a FET input operational amplifier with very high input impedance and low input currents with no compromise in noise, common mode rejection ratio, open loop gain, or slew rate. The LH0052H is internally compensated and is free of latch-up. The LH0052H is specified for operation over the -55℃ to +125℃ military temperature range. The LH0052H is specified for operation over the -25℃ to +85℃ temperature range.

Parametrics

LH0052H absolute maximum ratings: (1)Supply Voltage: ±22 V; (2)Differential Input Voltage: ±40 V; (3)Output Short Circuit Duration, TJMAX: 150 ℃; (4)Power Dissipation at TA = 25 ℃: 560 mW; (5)Thermal Resistance: 160 ℃/W; (6)Storage Temperature Range: -65 to 150 ℃; (7)Soldering Information, Metal Can Package: 300 ℃; (8)Input Offset Voltage: 1 to 2.5 mV; (9)Average TC of Input Offset Voltage: 3 to 5 μV/℃; (10)Change in Average TC with VOS Adjust: 0.5 μV/℃; (11)Input Offset Current: 3 to 10 pA; (12)Input Bias Current: 30 to 50 pA; (13)Input Resistance: 1012 Ω; (14)Large Signsl Voltage Gain: 50 to 200 V/mV; (15)Output Voltage Swing: ±12 to ±13 V.

Features

LH0052H features: (1)Supply Voltage: ±22V; (2)Power Dissipation (see Graph): 500 mW; (3)Input Voltage (Note 1): ±15V; (4)Differential Input Voltage (Note 2): ±30V; (5)Voltage Between Offset Null and V-: ±0.5V; (6)Operating Temperature Range, LH0052: -55℃ to +125℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec.): 300℃.

Diagrams

LH0052H block diagram
