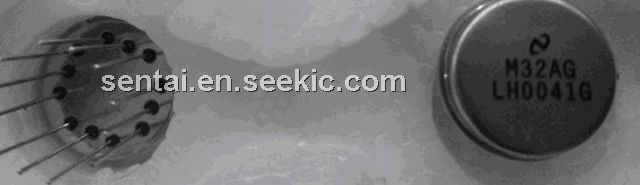

Product Summary

The LH0041G is a 0.2 Amp Power Operational Amplifier. The LH0041G is purpose operational amplifier capables of delivering large output currents not usually associated with conventional IC Op Amps. The LH0041G delivers currents of 200 mA at voltage levels closely approaching the available power supplies. In addition, both the inputs and outputs are protected against overload. The devices of the LH0041G are compensated with a single external capacitor and are free of any unusual oscillation or latch-up problems.

Parametrics

LH0041G absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: See Curves; (3)Differential Input Voltage: ±30V; (4)Input Voltage (Note 1): ±15V; (5)Peak Output Current (Note 2): 0.5 Amps; (6)Output Short Circuit Duration (Note 3): Continuous; (7)Operating Temperature Range: -25 ℃ to +85 ℃; (8)Storage Temperature Range: -65 ℃ to +150 ℃; (9)Lead Temperature (Soldering, 10 sec.): 300 ℃.

Features

LH0041G features: (1)Output current: 0.2 Amp; (2)Output voltage swing: ±14V into 100 Ω; (3)Wide full power bandwidth: 15 kHz; (4)Low standby power: 100 mW at ±15V; (5)Low input offset, voltage and current: 1 mV and 20 nA; (6)High slew rate: 3.0V/μs; (7)High open loop gain: 100 dB.

Diagrams

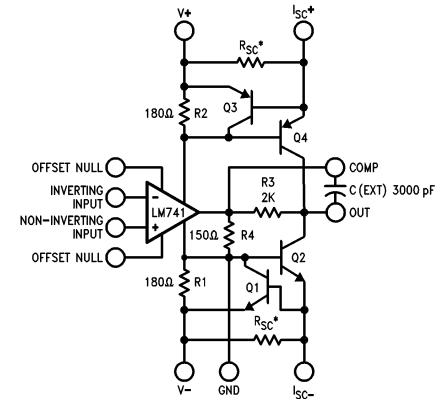

LH0041G block diagram
