Product Summary

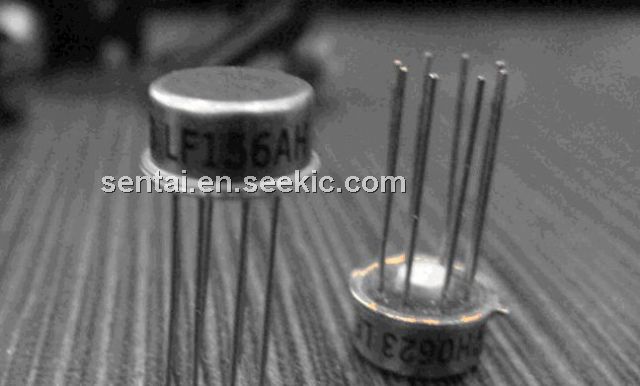

The LF156AH is a Monolithic JFET Input Operational Amplifier. The LF156AH is the first monolithic JFET input operational amplifiers to incorporate well matched, high voltage JFETs on the same chip with standard bipolar transistors. These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust which does not degrade drift or commonmode rejection. The devices of the LF156AH are also designed for high slew rate, wide bandwidth, extremely fast setting time, low voltage and current noise and a low 1/f noise corner. The applications of the LF156AH include Precision high speed integrators, Fast D/A and A/D converters, High impedance buffers, Wideband, lownoise, low drift amplifiers, Logarithmic amplifiers, Photocell ampelifiers, Sample and Hold circuits.
Parametrics
LF156AH absolute maximum ratings: (1)Supply Voltage: ±22 V; (2)Differential Input Voltage: ±40 V; (3)Output Short Circuit Duration, TJMAX: 150 ℃; (4)Power Dissipation at TA = 25 ℃: 560 mW; (5)Thermal Resistance: 160 ℃/W; (6)Storage Temperature Range: -65 to 150 ℃; (7)Soldering Information, Metal Can Package: 300 ℃; (8)Input Offset Voltage: 1 to 2.5 mV; (9)Average TC of Input Offset Voltage: 3 to 5 μV/℃; (10)Change in Average TC with VOS Adjust: 0.5 μV/℃; (11)Input Offset Current: 3 to 10 pA; (12)Input Bias Current: 30 to 50 pA; (13)Input Resistance: 1012 Ω; (14)Large Signsl Voltage Gain: 50 to 200 V/mV; (15)Output Voltage Swing: ±12 to ±13 V.
Features
LF156AH features: (1)Low inout bias current: 30 pA; (2)Low Inout Offset Current: 3 pA; (3)High input impedance: 1012 Ω; (4)Low input offset voltage: 1 mV; (5)Low input offset voltage temp. drift: 3 μV/℃; (6)Low input noise current: 0.01 pA/Hz; (7)High common-mode rejection ratio: 100 dB; (8)Large dc voltage gain 106 dB.

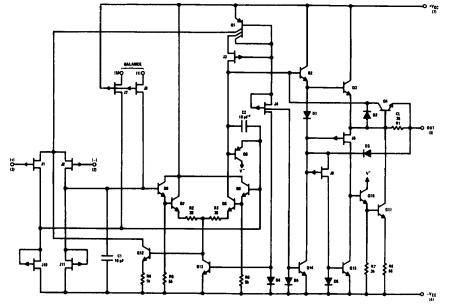

Diagrams
