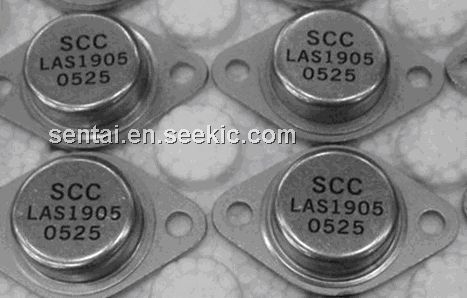

Product Summary

The LAS1905 is a voltage regulator. The LAS1905 is monolithic integrated circuits designed for use in applications requiring a well regulated positive output voltage. Outstanding features include full power usage up to 5.0 amperes of load current, internal current limiting, thermal shutdown, and safe area protection on the chip, providing protection of the series pass Darlington, under most operating conditions. Hermetically sealed copper and copper/steel TO-3 packages are ytilized for high reliability and low thermal resistance, while the TO-247 package is intended for cost effective designes. A low-noise, temperature stable band gap reference is the key design factor insuring excellent temperature regulation of the LAS 1900 Series. This, coupled to a very low output impedance, insures superior load regulation.

Parametrics

LAS1905 absolute maximum ratings: (1)Input Voltage: 30 Volts; (2)Power Dissipation: Intenally Limited; (3)Thermal Resistance Junction To Case: 0.9 ℃/Watt; (4)Operating Juncyion Temperature Range: -55 to 150 ℃; (5)Storage Temperature Range: -65 to 150 ℃; (6)Lead Temperature: 300 ℃.

Features

LAS1905 features: (1)Guaranteed Power Dissipation 50 Watts @ 80 ℃ Case; (2)Guaranteed input-output differential: +2.6 Volts; (3)Low noise, band gap reference; (4)Remote sense capability; (5)Sample power cycled burn-in; (6)Guaranteed thermal resistance junction to case: 0.9 ℃/W; (7)Available in TO-3 and TO-247 packages; (8)Grounded case.

Diagrams

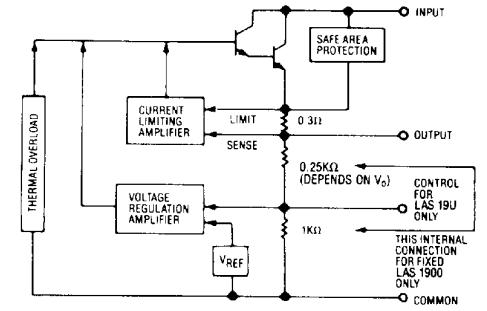

LAS1905 block diagram
