Product Summary

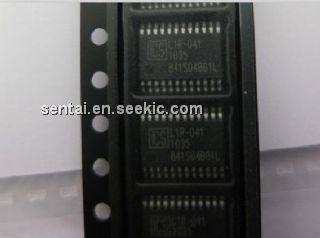

The ICS841S04BGIL is a PLL-based clock generator specifically designed for PCI_Express™Clock Generation applications. This device generates a 100MHz HCSL clock. The device offers a HCSL (Host Clock Signal Level) clock output from a clock input reference of 25MHz. The input reference may be derived from an external source or by the addition of a 25MHz crystal to the on-chip crystal oscillator. An external reference may be applied to the XTAL_IN pin with the XTAL_OUT pin left floating.
Parametrics
ICS841S04BGIL absolute maximum ratings: (1)Supply Voltage, VDD: 4.6V; (2)Inputs, VI: -0.5V to VDD_REF + 0.5 V; (3)Outputs, VO: -0.5V to VDD_SRC + 0.5V; (4)Package Thermal Impedance, θ JA: 89°C/W (0 lfpm); (5)Storage Temperature, TSTG: -65°C to 150°C.
Features
ICS841S04BGIL features: (1)One 0.7V current mode differential HCSL output pair; (2)Crystal oscillator interface, 25MHz; (3)Output frequency: 100MHz; (4)RMS period jitter: 3ps (maximum); (5)Cycle-to-cyle jitter: 35ps (maximum)I 2 C support with readback capabilities up to 400kHz; (6)Spread Spectrum for electromagnetic interference (EMI)reduction; (7)3.3V operating supply mode; (8)0°C to 70°C ambient operating temperature; (9)Available in both standard (RoHS 5)and lead-free (RoHS 6)packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICS841S04BGILF |
|
IC CLK GENERATOR PLL 24-TSSOP |
Data Sheet |
Negotiable |
|
||||||
|
ICS841S04BGILFT |
|
IC CLOCK GENERATOR PCI 24-TSSOP |
Data Sheet |
|
|
||||||
