Product Summary

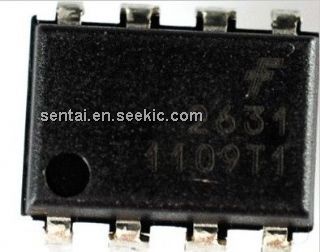

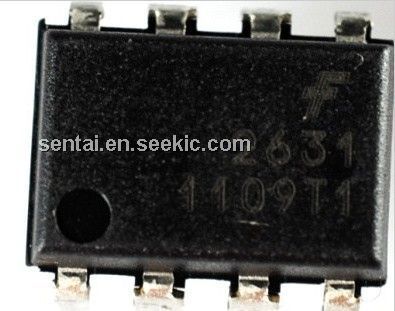

The HCPL-2631 is a high speed-10 mbit/s logic gate optocoupler. The HCPL-2631 consists of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-etector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40℃ to +85℃. A maximum input signal of 5 mA will provide a minimum output sink current of 13mA. The applications of the HCPL-2631 include Ground loop elimination, LSTTL to TTL, LSTTL or 5-volt CMOS, Line receiver, data transmission, Data multiplexing, Switching power supplies, Pulse transformer replacement, Computer-peripheral interface.
Parametrics
HCPL-2631 absolute maximum ratings: (1)TSTG: -55 to +125 ℃; (2)TOPR: -40 to +85 ℃; (3)TSOL: 260 for 10 sec ℃; (4)IF: 50 mA; (5)VE: 5.5 V; (6)VR: 5.0 V; (7)PI: 100 mW; (8)VCC: 7.0 V; (9)IO: 50 mA; (10)VO: 7.0 V; (11)PO: 85 mW.
Features
HCPL-2631 features: (1)Very high speed-10 MBit/s; (2)Superior CMR-10 kV/μs; (3)Double working voltage-480V; (4)Fan-out of 8 over -40℃ to +85℃; (5)Logic gate output; (6)Strobable output; (7)Wired OR-open collector; (8)U.L. recognized (File # E90700).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-2631 |
Avago Technologies |
High Speed Optocouplers 10MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-2631#020 |
Avago Technologies |
High Speed Optocouplers 10MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-2631#300 |
Avago Technologies |
High Speed Optocouplers 10MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-2631#520 |
Avago Technologies |
High Speed Optocouplers 10MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-2631#500 |
Avago Technologies |
High Speed Optocouplers 10MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-2631#320 |
Avago Technologies |
High Speed Optocouplers 10MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-2631-500E |
Avago Technologies |
High Speed Optocouplers 10MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-2631-300E |
Avago Technologies |
High Speed Optocouplers 10MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
