Product Summary

The DCP010515DBP is a family of 1W, unregulated, isolated DC/DC converter. Requiring a minimum of external components and including on-chip device protection, the DCP010515DBP series provides extra features such as output disable and synchronization of switching frequencies. The applications of the DCP010515DBP include Point-of-Use Power Conversion, Ground Loop Elimination, Data Acquisition, Industrial Control and Instrumentation, Test Equipment.

Parametrics

DCP010515DBP absolute maximum ratings: (1)Input voltage: 18 V; (2)Storage temperature: -40 to +125 ℃; (3)Lead temperature (soldering, 10s): +270 ℃.

Features

DCP010515DBP features: (1)Up To 85% Efficiency; (2)Thermal Protection; (3)Device-to-Device Synchronization; (4)Short-Circuit Protection; (5)EN55022 Class B EMC Performance; (6)UL1950 Recognized Component; (7)JEDEC DIP-14 and SOP-14 Packages.

Diagrams

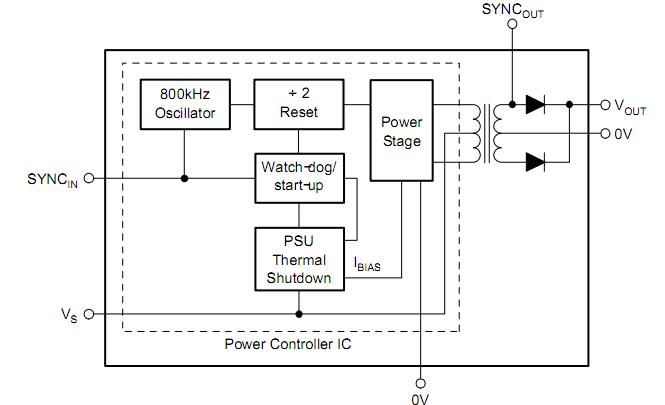

DCP010515DBP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DCP010515DBP
DCP010515DBP
Texas Instruments
DC/DC Converters Mini 1W Iso Unreg DC/DC Converter
Data Sheet
0-1: $7.22
1-10: $6.49
10-25: $5.78
25-50: $5.45
DCP010515DBP-U
DCP010515DBP-U
Texas Instruments
DC/DC Converters Mini 1W Iso Unreg DC/DC Converter
Data Sheet
0-1: $7.22
1-10: $6.49
10-25: $5.78
25-50: $5.45
DCP010515DBP-U/700
DCP010515DBP-U/700
Texas Instruments
DC/DC Converters Mini 1W Iso Unreg DC/DC Converter
Data Sheet
0-540: $3.75
540-700: $3.75
700-750: $3.68
750-1000: $3.61
