Product Summary
The CR220 is a family of ±10% range current regulator. The CR220 designed for demanding applications in test equipment and instrumentation. These devices of the CR220 combine a JFET with an integrated resistor to produce a single two-leaded device which is extremely simple to operate. With nominal current ranges from 1.60 mA to 4.70 mA, this series will meet a wide array of design requirements. The applications of the CR220 include Constant-Current Supply, Current Limiting, Timing Circuits.
Parametrics
CR220 absolute maximum ratings: (1)Peak Operating Voltage: 100 V; (2)Reverse Current: 50 mA; (3)Thermal Resistance: 417℃/W; (4)Storage Temperature: -55 to 200℃; (5)Power Dissipationa: 300 mW.
Features
CR220 features: (1)Two-Lead Hermetic Package; (2)Guaranteed Tight ±10% Tolerance; (3)Operation from 1 V (CR160) to 100 V; (4)Excellent Temperature Stability.

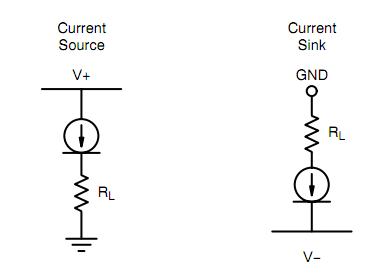

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
CR220 |
Vishay/Siliconix |
Current Regulator Diodes 2.2mA +/- 10% |
Data Sheet |
Negotiable |
|
|||||
CR2202AA |
Crydom |
Sidacs T0 220 130V |
Data Sheet |
Negotiable |
|
|||||
CR2202AB |
Crydom |
Sidacs T0 220 130V |
Data Sheet |
Negotiable |
|
|||||
CR2202AC |
Crydom |
Sidacs T0 220 130V |
Data Sheet |
Negotiable |
|
|||||
CR220-E3 |
Vishay/Siliconix |
Current Regulator Diodes 2.2mA +/- 10% |
Data Sheet |
Negotiable |
|
