Product Summary

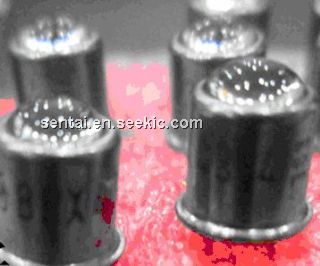

The BPX43 is a very high sensitive silicon NPN epitaxial planar phototransistor. The BPX43 is in a standard TO–18 hermetically sealed metal case with a glass lens. A superior linearity of photocurrent vs. irradiation makes it ideal for linear applications. A base terminal of the BPX43 is available to enable biasing and sensitivity control. The applications of the BPX43 include Detector for analogue and digital applications in industrial electronics, measuring and control, e.g. long range light barriers with additional optics, optical switches, alarm systems.

Parametrics

BPX43 absolute maximum ratings: (1)Collector Base Voltage, VCBO: 80 V; (2)Collector Emitter Voltage, VCEO: 70 V; (3)Emitter Base Voltage, VEBO: 7 V; (4)Collector Current, IC: 50 mA; (5)Peak Collector Current, ICM: 200 mA; (6)Total Power Dissipation Tamb, Ptot: 250 mW; (7)Junction Temperature, Tj: 125 ℃; (8)Operating Temperature Range, Top: –55 to +125 ℃; (9)Storage Temperature Range, Tstg: –55 to +125 ℃; (10)Soldering Temperature, Tsd: 260 ℃; (11)Thermal Resistance Junction/Ambient, RthJA: 400 K/W; (12)Thermal Resistance Junction/Case, RthJC: 150 K/W.

Features

BPX43 features: (1)Hermetically sealed TO–18 case; (2)Lens window; (3)Angle of half sensitivity φ = ± 15 °; (4)Exact central chip alignment; (5)Base terminal available; (6)Very high photo sensitivity; (7)High linearity; (8)Suitable for visible and near infrared radiation; (9)Selected into sensitivity groups.

Diagrams

BPX43 block diagram
