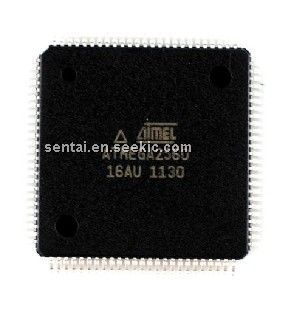

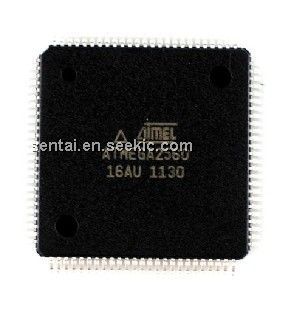

ATMEGA2560-16AU

ATMEGA2560-16AU, low-power CMOS 8-bit microcontroller, -0.5V to +13.0V, 200.0 mA, TQFP, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.50 / Piece
10 ~ 100 :	1.20 / Piece
100 ~ 1000 :	1.00 / Piece

PartNumber:: ATMEGA2560-16AU

Brand:: ATMEL Corporation - ATMEL | Pack: | D/C:

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Miki's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-29

From Other Seller

Part Number:ATMEGA2560-16AU
US $1.00 - 1.50
Quantity:

piece

Product Summary

The ATMEGA2560-16AU is a low-power CMOS 8-bit microcontroller. The ATMEGA2560-16AU is based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA2560-16AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA2560-16AU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

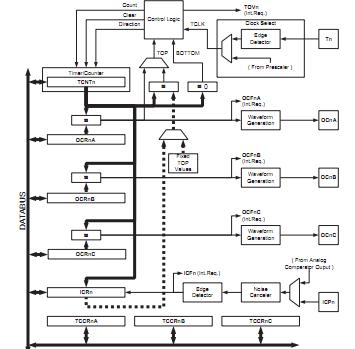

ATMEGA2560-16AU features: (1)High Performance, Low Power AVR 8-Bit Microcontroller; (2)Advanced RISC Architecture; (3)Non-volatile Program and Data Memories; (4)JTAG (IEEE std. 1149.1 compliant) Interface; (5)Peripheral Features, Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode; (6)Special Microcontroller Features; (7)I/O and Packages; (8)Temperature Range: -40℃ to 85℃ Industrial; (9)Ultra-Low Power Consumption, Active Mode: 1 MHz, 1.8V: 510 μA; (10)Speed Grade (see “Maximum speed vs. VCC” on page 377).
