Product Summary
The AO4842 is a dual n-channel enhancement mode field effect transistor. The AO4842 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in buck converters. AO4842 is Pb-free (meets ROHS & Sony 259 specifications). AO4842L is a Green Product ordering option.
Parametrics
AO4842 absolute maximum ratings: (1)Drain-Source Voltage: 30V; (2)Gate-Source Voltage: +/-20V; (3)Continuous Drain Current: 7.5 or 6.4 A; (4)Pulsed Drain Current: 30 A; (5)Power Dissipation: 2 W; (6)Junction and Storage Temperature Range: -55 to 150 ℃; (7)Avalanche Current: 13 A .
Features
AO4842 features: (1)VDS (V) = 30V; (2)ID = 7.5A (VGS=10V); (3)RDS(ON) < 22mΩ (VGS=10V); (4)RDS(ON) < 35mΩ (VGS=4.5V).

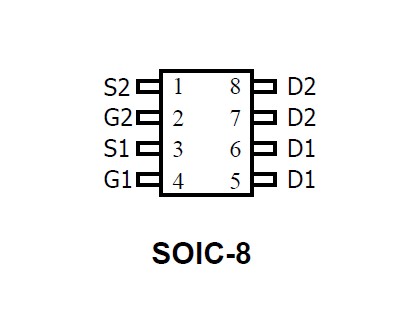

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AO4842 |
MOSFET DUAL N-CH 30V 7.5A 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
