Product Summary

The AO4485 is a dual P-channel enhancement mode field effect transistor. The AO4485 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications.

Parametrics

AO4485 absolute maximum ratings: (1)Drain-Source Voltage: -30V; (2)Gate-Source Voltage: +/-25V; (3)Continuous Drain Current: -8 or -6.9 A; (4)Pulsed Drain Current: -40 A; (5)Power Dissipation: 2 W; (6)Junction and Storage Temperature Range: -55 to 150 ℃ .

Features

AO4485 features: (1)VDS (V) = -30V; (2)ID = -8A; (3)RDS(ON) < 18mΩ (VGS = -20V); (4)RDS(ON) < 19mΩ (VGS = -10V).

Diagrams

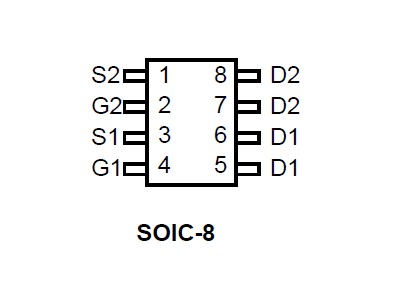

AO4485 pin connection
