Product Summary

The AO4485 is a P-channel enhancement mode field effect transistor. The AO4485 uses advanced trench technology to provide excellent RDS(ON) with low gate charge. This device is suitable for use as a DC-DC converter application.

Parametrics

AO4485 absolute maximum ratings: (1)Drain-Source Voltage: +/-40V; (2)Gate-Source Voltage: +/-20V; (3)Continuous Drain Current: -8 or -10 A; (4)Pulsed Drain Current: -120 A; (5)Power Dissipation: 3.1 W; (6)Junction and Storage Temperature Range: -55 to 150 ℃; (7)Avalanche Current: -28 A .

Features

AO4485 features: (1)VDS (V) = -40V; (2)ID = -10A (VGS = -10V); (3)RDS(ON) < 15mΩ (VGS = -10V); (4)RDS(ON) < 20mΩ (VGS = -4.5V).

Diagrams

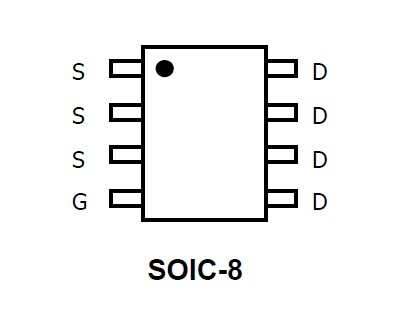

AO4485 pin connection
