Product Summary

The AO4442 is an N-Channel Enhancement Mode Field Effect Transistor. The AO4442 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge and operation with gate voltage from 4.5V to 25V. This device of the AO4442 is suitable for use as a load switch or in PWM applications. Standard Product AO4442 is Pb-free (meets ROHS & Sony 259 specifications). The AO4442 is a Green Product ordering option.

Parametrics

AO4442 absolute maximum ratings: (1)Drain-Source Voltage, VDS: 75 V; (2)Gate-Source Voltage, VGS: ±25 V; (3)Continuous Drain Current, ID: -3.1 A; (4)Pulsed Drain Current, IDM: -20 A; (5)Power Dissipation, PD: 2.5 W; (6)Junction and Storage Temperature Range, TJ: -55 to 150 ℃.

Features

AO4442 features: (1)VDS (V) = 75V; (2)ID = 3.1 A (VGS =10V); (3)RDS(ON) < 130mΩ (VGS = 10V); (4)RDS(ON) < 165mΩ(VGS =4.5V).

Diagrams

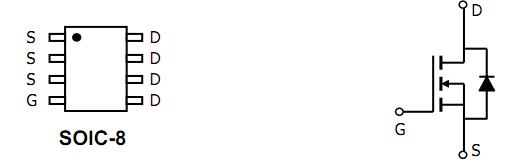

AO4442 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AO4442
AO4442


MOSFET N-CH 75V 3.1A 8SOIC
