Product Summary

The AO4429 is a P-channel enhancement mode field effect transistor. The AO4429 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge. This device is suitable for use as a load switch. The device is ESD protected. Standard Product AO4429 is Pb-free (meets ROHS & Sony 259 specifications).

Parametrics

AO4429 absolute maximum ratings: (1)Drain-Source Voltage: -30V; (2)Gate-Source Voltage: +/-20V; (3)Continuous Drain Current: -12.8 or -15 A; (4)Pulsed Drain Current: -80 A; (5)Power Dissipation: 3.1 W; (6)Junction and Storage Temperature Range: -55 to 150 ℃.

Features

AO4429 features: (1)VDS (V) = -30V; (2)ID = -15 A (VGS = -10V); (3)Max RDS(ON) < 7.7mΩ (VGS = -10V); (4)Max RDS(ON) < 12mΩ (VGS = -4.5V); (5)ESD Rating: 4KV HBM.

Diagrams

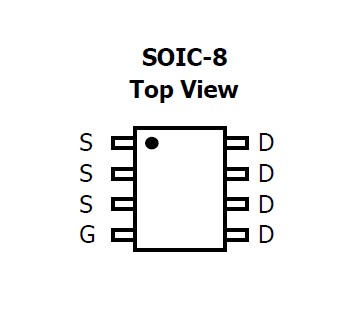

AO4429 pin connection
