Product Summary

The AO4423 is a P-channel enhancement mode field effect transistor. The AO4423 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications. It is ESD protected.

Parametrics

AO4423 absolute maximum ratings: (1)Drain-Source Voltage: -30V; (2)Gate-Source Voltage: +/-25V; (3)Continuous Drain Current: -15 or -12.1 A; (4)Pulsed Drain Current: -80 A; (5)Power Dissipation: 3.1 W; (6)Junction and Storage Temperature Range: -55 to 150 ℃.

Features

AO4423 features: (1)VDS (V) = -30V; (2)ID = -15A; (3)RDS(ON) < 7mΩ (VGS = -20V); (4)RDS(ON) < 8.5mΩ (VGS = -10V); (5)ESD Rating: 6000V HBM.

Diagrams

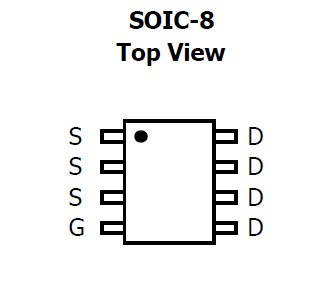

AO4423 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AO4423
AO4423

MOSFET P CH 30V 17A SOIC 8
Data Sheet
0-1: $0.68
1-25: $0.54
25-100: $0.49
100-250: $0.42
250-500: $0.38
500-1000: $0.30
