Product Summary

The AO4421 is a P-channel enhancement mode field effect transistor. The AO4421 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge. This device is suitable for use as a load switch or in PWM applications. Standard Product Pb-free (meets ROHS & Sony 259 specifications).

Parametrics

AO4421 absolute maximum ratings: (1)Drain-Source Voltage: -60V; (2)Gate-Source Voltage: +/-20V; (3)Continuous Drain Current: -6.2 or -5 A; (4)Pulsed Drain Current: -40 A; (5)Power Dissipation: 3.1 W; (6)Junction and Storage Temperature Range: -55 to 150 ℃.

Features

AO4421 features: (1)VDS (V) = -60V; (2)ID = -6.2 A (VGS = -10V); (3)RDS(ON) < 40mΩ&cedil; (VGS = -10V); (4)RDS(ON) < 50mΩ&cedil; (VGS = -4.5V).

Diagrams

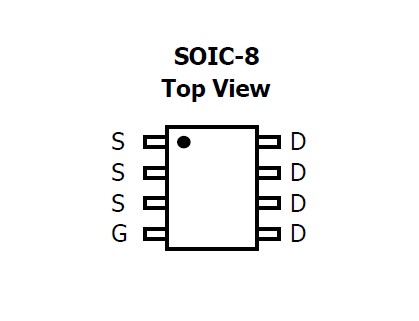

AO4421 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AO4421
AO4421

MOSFET P-CH -60V -6.2A 8-SOIC
Data Sheet
0-1: $0.47
1-25: $0.36
25-100: $0.32
100-250: $0.28
250-500: $0.24
500-1000: $0.19
