Product Summary

The AO4411 is a P-channel enhancement mode field effect transistor. The AO4411 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge. This device is suitable for use as a load switch or in PWM applications. Standard Product AO4411 is Pb-free (meets ROHS & Sony 259 specifications).

Parametrics

AO4411 absolute maximum ratings: (1)Drain-Source Voltage: -30V; (2)Gate-Source Voltage: +/-20V; (3)Continuous Drain Current: -8 or -6.6 A; (4)Pulsed Drain Current: -40 A; (5)Power Dissipation: 3.0 W; (6)Junction and Storage Temperature Range: -55 to 150 ℃.

Features

AO4411 features: (1)VDS (V) = -30V; (2)ID = -8 A (VGS = -10V); (3)RDS(ON) < 32mΩ&cedil; (VGS = -10V); (4)RDS(ON) < 55mΩ&cedil; (VGS = -4.5V).

Diagrams

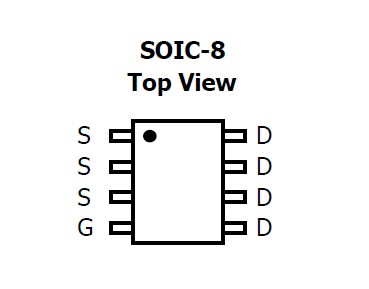

AO4411 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AO4411
AO4411

MOSFET P CH 30V 8A SOIC 8
Data Sheet
0-1: $0.44
1-25: $0.31
25-100: $0.27
100-250: $0.23
250-500: $0.20
500-1000: $0.15
