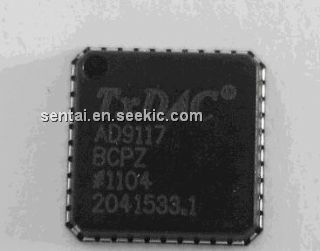

Product Summary

The AD9117BCPZ is a pin-compatible dual, 8-/10-/12-/14-bit, low power digital-to-analog converter (DACs). The AD9117BCPZ provide a sample rate of 125 MSPS. The AD9117BCPZ are optimized for the transmit signal path of commu-nication systems. All the device share the same interface, LFCSP, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. It is ideal for: (1)Wireless infrastructures; (2)Picocell, femtocell base stations; (3)Medical instrumentation; (4)Ultrasound transducer excitation; (5)Portable instrumentation; (6)Signal generators, arbitrary waveform generators .

Parametrics

AD9117BCPZ absolute maximum ratings: (1)AVDD, DVDDIO, CVDD to AVSS, DVSS, CVSS: -0.3V to 3.9V; (2)DVDD to DVSS: -0.3 V to +2.1 V; (3)AVSS to DVSS, CVSS: -0.3 V to +0.3 V; (4)DVSS to AVSS, CVSS: -0.3 V to +0.3 V; (5)CVSS to AVSS, DVSS: -0.3 V to +0.3 V; (6)VREF, FSADJQ, FSADJI, CMLQ, CMLI to AVSS: -0.3 V to AVDD + 0.3 V; (7)D13 to D0, CS, SCLK, SDIO, SDO, RESET to DVSS: -0.3 V to DVDD + 0.3 V; (8)CLKIN to CVSS: -0.3 V to CVDD + 0.3 V; (9)CS, SCLK, SDIO, SDO to DVSS: –0.3 V to DVDD + 0.3 V; (10)Junction Temperature: 125°C; (11)Storage Temperature Range: -65°C to +150°C.

Features

AD9117BCPZ features: (1)Power dissipation 3.3 V, 20 mA output: 191 mW 10 MSPS; 232 mW 125 MSPS; (2)Sleep mode: <3 mW @ 3.3 V; (3)Supply voltage: 1.8 V to 3.3 V; (4)SFDR to Nyquist: 86 dBc 1 MHz output; 85 dBc 10 MHz output; (5)AD9117 NSD 1 MHz output, 125 MSPS, 20mA: -162 dBc/Hz; (6)Differential current outputs: 4 mA to 20 mA; (7)Two on-chip auxiliary DACs; (8)CMOS inputs with single-port operation; (9)Output common mode: adjustable 0 V to 1.2 V; (10)Small footprint 40-lead LFCSP Pb-free package .

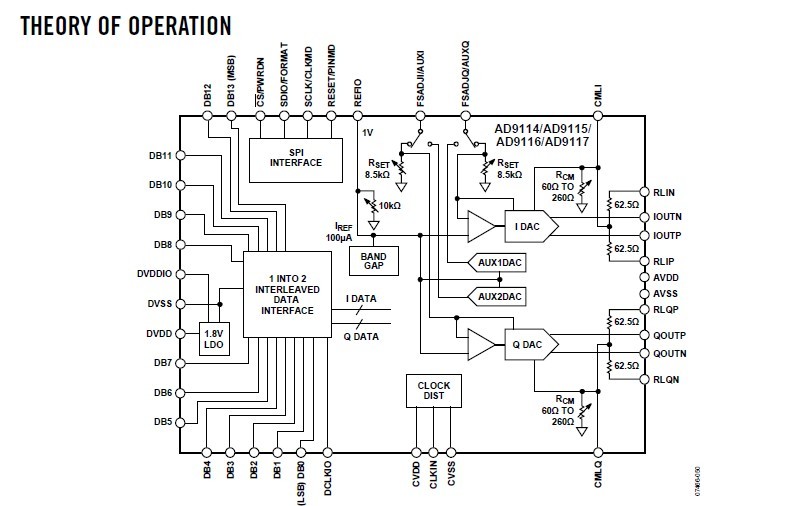

Diagrams

AD9117BCPZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

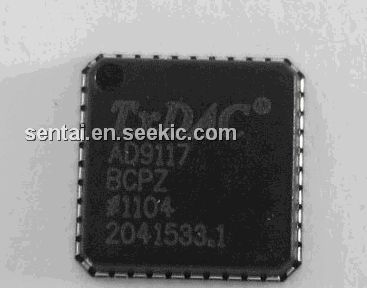

AD9117BCPZ
AD9117BCPZ


IC DAC DUAL 14BIT LO PWR 40LFCSP

Data Sheet

0-1: $11.56
1-10: $10.51
10-100: $8.93
100-250: $8.14
250-500: $7.62
500-1000: $7.01
AD9117BCPZRL7
AD9117BCPZRL7


IC DAC DUAL 14BIT LO PWR 40LFCSP

Data Sheet

0-750: $7.25
