Product Summary
The AD636JHZ is a low power monolithic IC that performs true rms-to-dc conversion on low level signals. The AD636JHZ offers performance that is comparable or superior to that of hybrid and modular converters costing much more. The AD636JHZ is specified for a signal range of 0 mV to 200 mV rms. Crest factors up to 6 can be accommodated with less than 0.5% additional error, allowing accurate measurement of complex input waveforms.
Parametrics
AD636JHZ absolute maximum ratings: (1)Supply Voltage:±16.5 V, 24 V; (2)Internal Power Dissipation1: 500 mW; (3)Maximum Input Voltage: ±12 VPEAK; (4)Storage Temperature Range: 55℃ to +150℃; (5)Operating Temperature Range: 0℃ to 70℃; (6)Lead Temperature Range (Soldering 60 sec): 300℃; (7)ESD Rating: 1000 V.
Features
AD636JHZ features: (1)True rms-to-dc conversion; (2)200 mV full scale; (3)Laser-trimmed to high accuracy, 0.5% maximum error (AD636K), 1.0% maximum error (AD636J); (4)Wide response capability, Computes rms of ac and dc signals, 1 MHz, -3 dB bandwidth: V rms > 100 mV, Signal crest factor of 6 for 0.5% error; (5)dB output with 50 dB range; (6)Low power: 800 μA quiescent current; (7)Single or dual supply operation; (8)Monolithic integrated circuit; (9)Low cost.

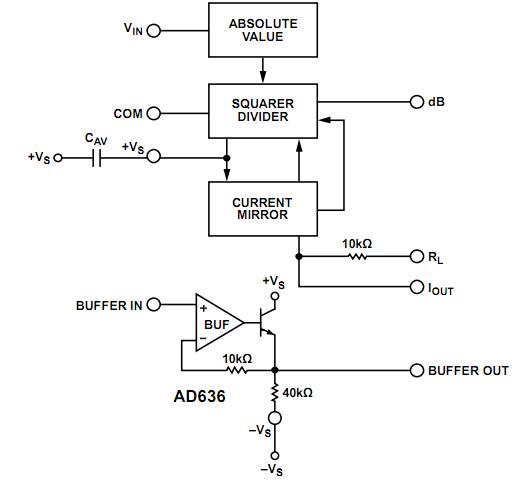

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD636JHZ |
IC CONV RMS-DC LOW LVL TO100-10 |
Data Sheet |
|
|
||||||||||||||||||
