Product Summary
The AD536AJH is an Integrated Circuit True RMS-to-DC Converter. The AD536AJH performs true rms-to-dc conversion. The AD536AJH offers performance which is comparable or superior to that of hybrid or modular units costing much more. The The AD536AJH directly computes the true rms value of any complex input waveform containing ac and dc components. The AD536AJH has a crest factor compensation scheme which allows measurements with 1% error at crest factors up to 7. The wide bandwidth of the device extends the measurement capability to 300 kHz with 3 dB error for signal levels above 100 mV.
Parametrics
AD536AJH absolute maximum ratings: (1)Supply Voltage Dual Supply: ±18 V; (2)Supply Voltage Single Supply: +36 V; (3)Internal Power Dissipation2: 500 mW; (4)Maximum Input Voltage: ±25 V Peak; (5)Buffer Maximum Input Voltage: ±VS; (6)Maximum Input Voltage: ±25 V Peak; (7)Storage Temperature Range: –55 ℃ to +150 ℃; (8)Operating Temperature Range: 0 ℃ to +70 ℃; (9)Lead Temperature Range: +300 ℃; (10)ESD Rating: 1000 V.
Features
AD536AJH features: (1)True RMS-to-DC Conversion; (2)Laser-Trimmed to High Accuracy 0.2% Max Error; (3)Wide Response Capability: Computes RMS of AC and DC Signals, 450 kHz Bandwidth: V rms > 100 mV, 2 MHz Bandwidth: V rms > 1 V, Signal Crest Factor of 7 for 1% Error; (4)dB Output with 60 dB Range; (5)Low Power: 1.2 mA Quiescent Current; (6)Single or Dual Supply Operation; (7)Monolithic Integrated Circuit, 55 ℃ to +125 ℃ Operation.

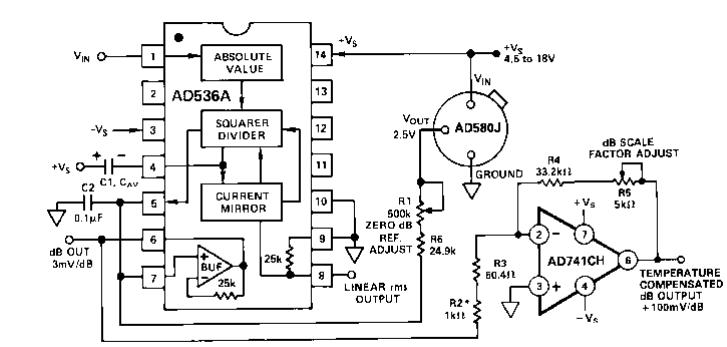

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD536AJHZ |
IC CONV TRUE RMS/DC TO-100-10 |
Data Sheet |
|
|
||||||||||||||||||
AD536AJH |
Analog Devices Inc |
IC TRUE RMS/DC CONV TO-100-10 |
Data Sheet |
Negotiable |
|
