Product Summary
The 2SK180 is a Silicon N-Channel MOSFET. The application of the 2SK180 includes High speed power switching.
Parametrics
2SK180 absolute maximum ratings: (1)Drain to source voltage, VDSS: 900 V; (2)Gate to source voltage, VGSS: ±30 V; (3)Drain current, ID: 4A; (4)Drain peak current, ID(pulse): 10 A; (5)Body to drain diode reverse drain current, IDR: 4A; (6)Channel dissipation, Pch: 60 W; (7)Channel temperature, Tch: 150 ℃; (8)Storage temperature, Tstg: –55 to +150 ℃.
Features
2SK180 features: (1)Low on-resistance; (2)High speed switching; (3)Low drive current; (4)No secondary breakdown; (5)Suitable for switchingregulator, DC-DC converter.

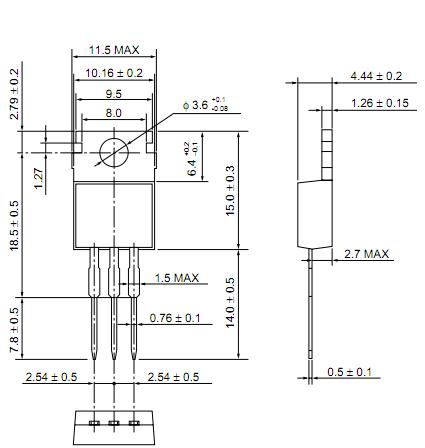

Diagrams
