Product Summary
The 2SK1647 is a Silicon N-Channel MOSFET. The application of the 2SK1647 includes High speed power switching.
Parametrics
2SK1647 absolute maximum ratings: (1)Drain to source voltage, VDSS: 900 V; (2)Gate to source voltage, VGSS: ±30 V; (3)Drain current, ID: 2 A; (4)Drain peak current, ID(pulse): 6 A; (5)Body to drain diode reverse drain current, IDR: 2 A; (6)Channel dissipation, Pch: 50 W; (7)Channel temperature, Tch: 150℃; (8)Storage temperature, Tstg: –55 to +150℃.
Features
2SK1647 features: (1)Low on-resistance; (2)High speed switching; (3)Low drive current; (4)No secondary breakdown; (5)Suitable for switching regulator and DC-DC converter.

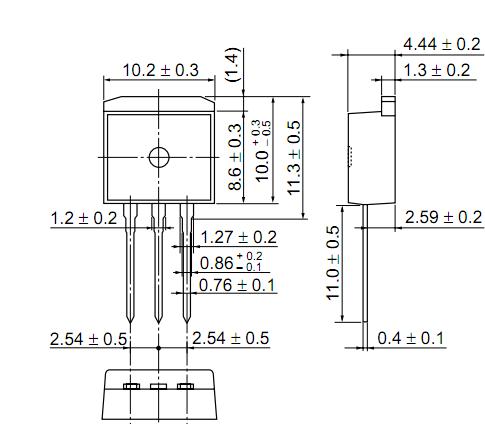

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
2SK1647(L) |
Other |
Data Sheet |
Negotiable |
|
||||||
2SK1647(S) |
Other |
Data Sheet |
Negotiable |
|
||||||
2SK1647L |
Other |
Data Sheet |
Negotiable |
|
