Product Summary

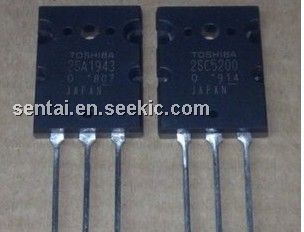

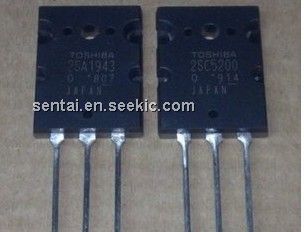

The 2SA1943/2sc5200 is a transistor. The applications of the 2SA1943/2sc5200 include Complementary to 2SC5200, Recommended for 100W High Fidelity Audio Frequency Amplifier Output Stage.
Parametrics
2SA1943/2sc5200 absolute maximum ratings: (1)Collector-Base Voltage, VCBO: -230 V; (2)Collector-Emitter Voltage, VCEO: -230 V; (3)Emitter-Base Voltage, VEBO: -5 V; (4)Collector Current, IC: -15 A; (5)Base Current, IB: -1.5 A; (6)Collector Power Dissipation, PC: 150 W; (7)Junction Temperature, Tj: 150 ℃; (8)Storage Temperature Range, TSTG: -55 to 150 ℃.
Features
2SA1943/2sc5200 features: (1)Collector Cut-off Current, ICBO: 5.0 μA; (2)Emitter Cut-off Current, IEBO: 5.0 μA; (3)Collector-Emitter Breakdown Voltage, VCEO: -230 V; (4)DC Current Gain, hFE: 55 to 160 V; (5)Collector-Emitter Saturation Voltage, VCE: -1.5 to 3.0 V; (6)Base-Emitter Voltage, VBE: -1.0 to 1.5 V; (7)Transition Frequency, FT: 30 MHz; (8)Collector Output Capacitance, COB: 360 pF.
