Product Summary

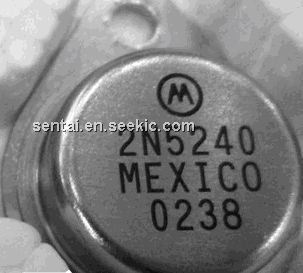

The 2N5240 is a multi epitaxial silicon n-p-n power transistor. The application of the 2N5240 includes Designed for use in series regulators, power amplifiers, inverters, deflection circuits, switching regulators, and high-voltage bridge amplifiers.

Parametrics

2N5240 absolute maximum ratings: (1)VCBO: 375 V; (2)VCER(SUS): 350 V; (3)VCEO(SUS): 300 V; (4)VEBO: 6 V; (5)IC: 5 A; (6)IB: 2 A; (7)PC: 100 W; (8)TJ: 200 ℃; (9)Tstg: -65 to 200 ℃.

Features

2N5240 features: (1)High Voltage: VCEO(SUS)= 300V(Min); (2)Wide Area of Safe Operation

Diagrams

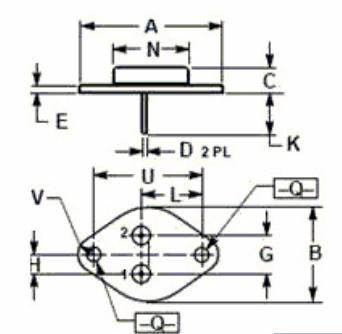

2N5240 block diagram
