Product Summary

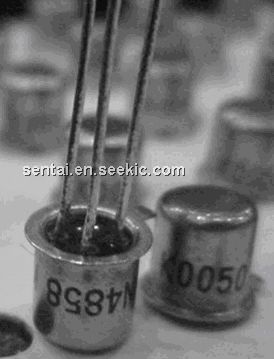

The 2N4858 is an N-CHANNEL J-FET.
Parametrics
2N4858 absolute maximum ratings: (1)Gate-Source Voltage, VGS: -40 V; (2)Drain-Source Voltage, VDS: 40 V; (3)Drain-Gate Voltage, VDG: 40 V; (4)Gate Current, IG: 50 mA; (5)Power Dissipation, TA = +250℃, TC = +250℃, PT: 0.36 W; (6)Operating Junction & Storage Temperature Range, Tj, Tstg: -65 to +200 ℃.
Features
2N4858 features: (1)Gate-Source Breakdown Voltage, V(BR)GSS: -40 Vdc; (2)Gate-Source “Off” State Voltage, VGS(on): -0.4 to -10 Vdc; (3)Gate Reverse Current, IGSS: -0.25 μA; (4)Drain Current, ID(off): 0.25 μA.
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2N4858 |
Other |
Data Sheet |
Negotiable |
|
||||||||||
2N4858A |
Central Semiconductor |
JFET Leaded JFET General Purpose |
Data Sheet |
|
|
|||||||||
2N4858A-E3 |
Vishay/Siliconix |
JFET 40V 5pA |
Data Sheet |
Negotiable |
|
|||||||||
2N4858JAN |
Other |
Data Sheet |
Negotiable |
|
||||||||||
2N4858JANTX |
Other |
Data Sheet |
Negotiable |
|
||||||||||
2N4858JANTXV |
Other |
Data Sheet |
Negotiable |
|
