Product Summary

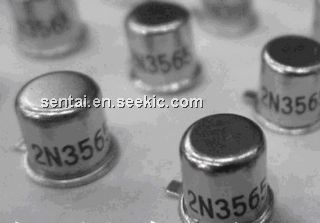

The 2N3565 is an NPN General Purpose Amplifier. This device of the 2N3565 is designed for use as general purpose amplifiers and switches requiring collector currents to 300 mA. Sourced from Process 10. See PN100 for characteristics.

Parametrics

2N3565 absolute maximum ratings: (1)VCEO, Collector-Emitter Voltage: 25 V; (2)VCBO, Collector-Base Voltage: 30 V; (3)VEBO, Emitter-Base Voltage: 6.0 V; (4)IC, Collector Current - Continuous: 500 mA; (5)TJ, Tstg, Operating and Storage Junction Temperature Range: -55 to +150 ℃.

Features

2N3565 features: (1)PD, Total Device Dissipation Derate above 25℃: 625 mW; (2)RθJC, Thermal Resistance, Junction to Case: 83.3 ℃/W; (3)RθJA, Thermal Resistance, Junction to Ambient: 200 ℃/W.
