Product Summary

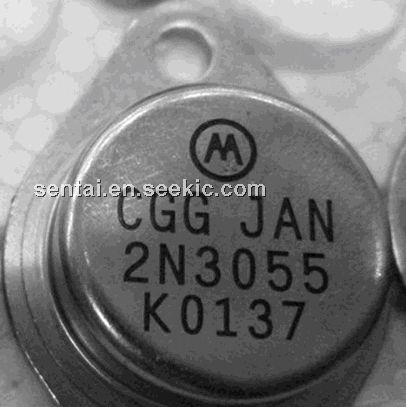

The 2N3055 is a POWER TRANSISTOR. The 2N3055 designed for use in general-purpose amplifier and switching applications.
Parametrics
2N3055 absolute maximum ratings: (1)Collector-Emitter Voltage, VCEO: 60 V; (2)Collector-Emitter Voltage, VCER: 70 V; (3)Collector-Base Voltage, VCBO: 100 V; (4)Emitter-Base Voltage, VEBO: 7.0 V; (5)Collector Current-Continuous, IC: 15 A; (6)Base Current, IB: 7.0 A; (7)Total Power Dissipation @TC = 25 ℃, PD: 115 W; (8)Operating and Storage Junction Temperature Range, TJ: -65 to 200℃.
Features
2N3055 features: (1)Power Dissipation-PD = 115 W @ TC = 25 ℃; (2)DC Current Gain hFE = 20 ~ 70 @ IC = 4.0 A; (3)VCE = 1.1 V @ IC = 4.0 A, IB = 400 mA.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2N3055AG |
ON Semiconductor |
Transistors Bipolar (BJT) 15A 60V 115W NPN |
Data Sheet |
|
|
|||||||||||||
2N3055HG |
ON Semiconductor |
Transistors Bipolar (BJT) 15A 60V 115W NPN |
Data Sheet |
Negotiable |
|
|||||||||||||
2N3055H |
ON Semiconductor |
Transistors Bipolar (BJT) 15A 60V 115W NPN |
Data Sheet |
Negotiable |
|
|||||||||||||
2N3055G |
ON Semiconductor |
Transistors Bipolar (BJT) NPN 15A 60V |
Data Sheet |
|
|
|||||||||||||
2N3055A |
ON Semiconductor |
Transistors Bipolar (BJT) 15A 60V 115W NPN |
Data Sheet |
Negotiable |
|
|||||||||||||
2N3055 |
STMicroelectronics |
Transistors Bipolar (BJT) NPN Power Switching |
Data Sheet |
|
|
|||||||||||||
2N3055E |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
2N3055_MJ2955 |
Other |
Data Sheet |
Negotiable |
|
