The 172D-5 is a commercial relay. The 172D-5 Centigrid relay is an ultraminiature, hermetically sealed, armature relay for commercial applications. The 172D-5’s low profile height (.280”) and .100” grid spaced terminals, which preclude the need for spreader pads, make it an ideal choice where extreme packaging density and/or close PC board spacing are required.
Parametrics
172D-5 absolute maximum ratings: (1)Temperature Storage: –65 ℃ to +125 ℃; (2)Temperature Operating: –55 ℃ to +85 ℃; (3)Vibration: 10 g’s to 500 Hz; (4)Shock: 30 g’s, 6 msec, half-sine; (5)Enclosure: Hermetically sealed; (6)Weight: 0.15 oz. (4.3g) max.
Features
172D-5 features: (1)All welded construction.; (2)Unique uni-frame design providing high magnetic efficiency and mechanical rigidity.; (3)High force/mass ratios for resistance to shock and vibration.; (4)Advanced cleaning techniques provide maximum assurance of internal; (5)cleanliness.; (6)Precious metal alloy contact material with gold plating assures excellent; (7)high current and dry circuit switching capabilities.

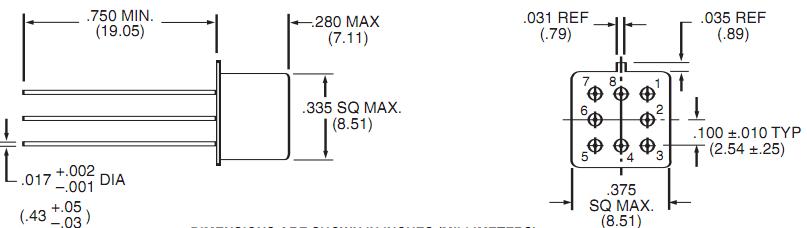

Diagrams
