Product Summary

A2175-HBL 150170MM 220VAC is a fan cord & accessorrie.

Features

A2175-HBL 150170MM 220VAC features: (1)Motor Design : Reliable Alveolate Motor Construction; (2)Insulation Resistance : 500Megohms minimum at 500 VAC; (3)Dielectric Strength : 1500 VAC for one minute; (4)Motor Protection : Thermal protected & Class B (II); (5)Noise Level : Measured in a semi-anechoic chamber with background noise level below 15 dB(A). The fan is running in free air with microphone at a distance of one meter from the fan intake; (6)Air Performance : Measured by a double chamber. The value are recorded when the fan speed is stabilized; at rated voltage; (7)Tolerances : ±15% on rated power and current.

Diagrams

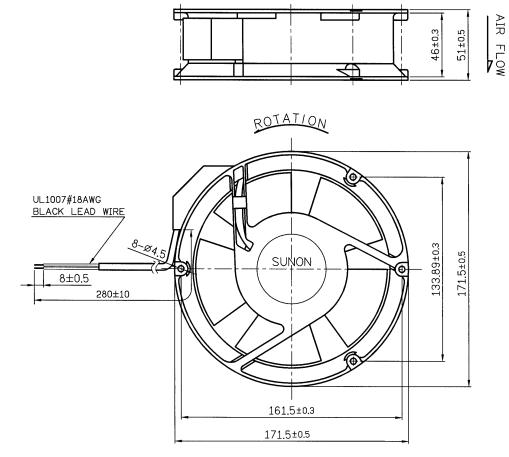

A2175-HBL 150170MM 220VAC block diagram
