Product Summary
The CCK26.5-MM-190-30 is a low loss rf coax cable assemblie.
Parametrics
CCK26.5-MM-190-30 absolute maximum ratings: (1)Strain Relief: Heavy duty adhesive strain relief; (2)Center Conductor: Silver-plated solid copper; (3)Inner Braid: Flat Silver plated copper strip; (4)Outer Braid: PC (Round Silver-plated copper braid); (5)Dielectric: Low density microporous PTFE; (6)Jacket: FEP (Fluorinated Ethylene Propylene); (7)Cable Outer Dia.: 0.205 (5.21mm); (8)Connectors: SST, corrosion-resistant 303 stainless steel per ASTM-A582 (Passivated finish per SAE-AMS-2700); (9)Center Pin: GPBC (Gold-plated beryllium copper); (10)Jacket Color: Grey; (11)Operating Temperature: -55℃ to +85℃ (2.9mm and SMA) -55℃ to +125℃ (SMA only).
Features
CCK26.5-MM-190-30 features: (1)Impedance: 50 Ohms; (2)Frequency: Up to 26.5 GHz; (3)Insertion Loss: <0.5 dB/ft at 26.5GHz; (4)VSWR: <1.35 to 26.5GHz; (5)Max Oper. Volt: 500V RMS; (6)Nominal Capacitance: 27.0 pF/ft; (7)Velocity of Propagation: 76%; (8)RF Shielding: < -90 dB; (9)Attenuation (dB/ft): 0.05 Max. at 500MHz ; (10)connector loss not included: 0.11 Max at 2GHz.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CCK26.5-MM-190-30 |
Crystek Corporation |
RF Cable Assemblies 26.5GHz 30 inch IL <.5dB/ft @26.5GHz |
Data Sheet |
|
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
CCK20F/90 |
|
CARD RACK KIT 4UX19X15.75 FRAME |
Data Sheet |
|
|
||||||||
|
CCK20P/90 |
|
CARD RACK KIT 4UX19X15.75 FRAME |
Data Sheet |
|
|
||||||||
 |
CCK220-3U |
Vector |

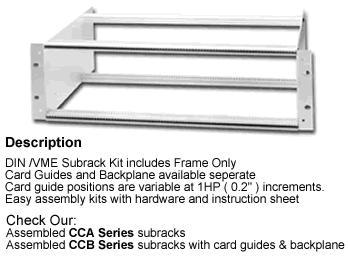

Racks & Rack Cabinet Accessories 3U DIN Subrack Kit |
Data Sheet |
|
|
||||||||
|
CCK220-6U |
Vector |
Racks & Rack Cabinet Accessories 6U DIN Subrack Kit |
Data Sheet |
|
|
||||||||
|
CCK220-9U |
|
CARD RACK FRAME KIT VME 9UX220MM |
Data Sheet |
|
|
||||||||
|
CCK26.5-MM-190-30 |
Crystek Corporation |
RF Cable Assemblies 26.5GHz 30 inch IL <.5dB/ft @26.5GHz |
Data Sheet |
|
|
||||||||
